Yamaha Jog R 20062006 Yamaha Jog R specifications, pictures, reviews and rating |

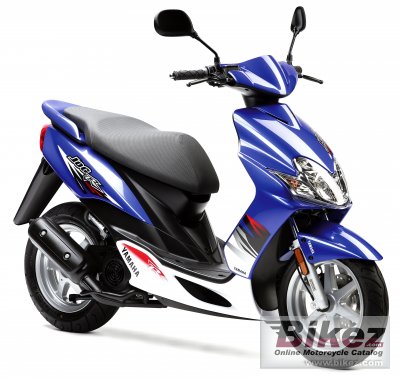

2006 Yamaha Jog R. Picture credits - Yamaha. Submit more pictures. |
Yamaha's profilation of this bike |
Jog R, the practical scooter with the sporting personality. This is the ideal machine for getting out and about, meeting friends, sharing life’s pleasures and making the most of your time, and it’s designed for some sporting action whenever the mood takes you. |
General moped information | |
---|---|
Model | Yamaha Jog R |
Year of manufacture | 2006 |
Type | Scooter |
Rating | 2.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission | |
Engine size | 49.0 ccm (2.99 cubic inches) |
Type of engine | Single cylinder, two-stroke |
Output | 2.2 HP (1.6 kW)) @ 6750 RPM |
Torque | 2.5 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 4500 RPM |
Compression | 10.2:1 |
Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
Ignition | Electric (CDI) |
Lubrication system | Separate lubrification |
Cooling system | Air |
Gearbox | 5-speed |
Transmission type | Chain (final drive) |
Clutch | Automatic centrifugal |
Chassis, suspension, brakes and wheels | |
Frame type | Front suspension system |
Front suspension | Hydraulic and telescopic fork |
Rear suspension | Single Shock |
Front tire | 110/70-12 |
Rear tire | 130/70-12 |
Front brakes | Single disc |
Diameter | 190 mm (7.5 inches) |
Rear brakes | Expanding brake (drum brake) |
Diameter | 110 mm (4.3 inches) |
Physical measures and capacities | |
Dry weight | 76.0 kg (167.6 pounds) |
Power/weight ratio | 0.0283 HP/kg |
Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
Overall height | 1065 mm (41.9 inches) |
Overall length | 1740 mm (68.5 inches) |
Overall width | 675 mm (26.6 inches) |
Ground clearance | 132 mm (5.2 inches) |
Wheelbase | 1210 mm (47.6 inches) |
Fuel capacity | 5.50 litres (1.45 US gallons) |
Other specifications | |
Starter | Electric & kick |
Update specs | Report missing specs or required updates. |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder | CMSNL provides online schematics & OEM parts and ships to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 06 Yamaha Jog R discussion group or the general Yamaha discussion group. |
Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the moped's reliability, repair costs, etc. Show any 2006 Yamaha Jog R for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such mopeds are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
Rating sample for this Yamaha moped | |
Racing track capabilities for the 2006 Yamaha Jog R: (41.6 out of 100) Click here for complete rating. You can also compare bikes. |
