Yamaha Jog Deluxe 20112011 Yamaha Jog Deluxe specifications, pictures, reviews and rating |

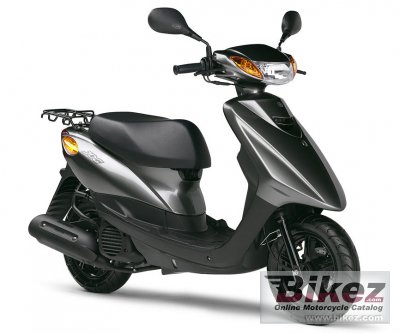

 2011 Yamaha Jog Deluxe. Picture credits - Yamaha. Submit more pictures.
|
| General moped information | |
|---|---|
| Motorcycle name | Yamaha Jog Deluxe |
| Year model | 2011 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | Reed valve |
| Torque | 3.9 Nm (0.4 kgf-m or 2.9 ft.lbs) @ 6500 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | By pump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | V belt type continuously variable transmission |
| Fuel consumption | 3.56 litres/100 km (28.1 km/l or 66.07 mpg) |
| Greenhouse gases | 82.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Automatic centrifugal |
| Chassis, suspension, brakes and wheels | |
| Frame type | Backbone pipe |
| Rake (fork angle) | 24.0° |
| Trail | 70 mm (2.8 inches) |
| Front suspension | Telescopic hydraulic fork |
| Rear suspension | Swingarm w/ hydraulic single shock |
| Front tire | 90/90-10 |
| Rear tire | 90/90-10 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 84.0 kg (185.2 pounds) |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height | 1037 mm (40.8 inches) |
| Overall length | 1685 mm (66.3 inches) |
| Overall width | 650 mm (25.6 inches) |
| Ground clearance | 90 mm (3.5 inches) |
| Wheelbase | 1160 mm (45.7 inches) |
| Fuel capacity | 4.40 litres (1.16 US gallons) |
| Oil capacity | 0.80 litres (0.85 US quarts) |
| Other specifications | |
| Color options | Black, white, red, silver |
| Starter | Electric & kick |
| Comments | Sold in Japan. |
