1983 Yamaha IT 490

Yamaha IT 490 1983


1983 Yamaha IT 490 specifications, pictures, reviews and rating

1983 Yamaha IT 490

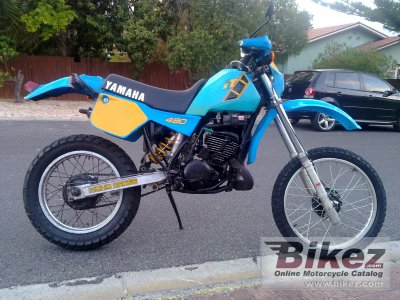

1983 Yamaha IT 490. Picture submitted by anonymous user.. Submit more pictures.
General information
Motorcycle name Yamaha IT 490
Year 1983
Category Enduro / offroad
Rating 3.6  Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement 487.0 ccm (29.72 cubic inches)
Engine type Single cylinder, two-stroke
Power 35.0 HP (25.5 kW)) @ 6000 RPM
Torque 42.0 Nm (4.3 kgf-m or 31.0 ft.lbs) @ 5500 RPM
Compression 4.9:1
Bore x stroke 87.0 x 82.0 mm (3.4 x 3.2 inches)
Fuel system Carburettor. 38mm Mikuni
Ignition CDI
Cooling system Air
Gearbox 5-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front suspension 43mm Telescopic adjustable forks
Front wheel travel 300 mm (11.8 inches)
Rear suspension Mono shock, adjustable spring preload and rebound damping
Rear wheel travel 300 mm (11.8 inches)
Rear tire 150/80-18
Front brakes Expanding brake (drum brake)
Rear brakes Expanding brake (drum brake)
Physical measures and capacities
Dry weight 125.0 kg (275.6 pounds)
Power/weight ratio 0.2800 HP/kg
Fuel capacity 13.60 litres (3.59 US gallons)
Other specifications
Color options Blue
Starter Kick
