Yamaha IT 250 E 19781978 Yamaha IT 250 E specifications, pictures, reviews and rating |

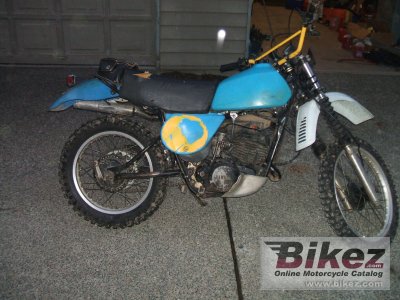

 1978 Yamaha IT 250 E. Picture submitted by anonymous user.. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Yamaha IT 250 E |
| Year | 1978 |
| Category | Enduro / offroad |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 246.0 ccm (15.01 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 26.1 HP (19.1 kW)) @ 7500 RPM |
| Torque | 26.5 Nm (2.7 kgf-m or 19.5 ft.lbs) @ 7000 RPM |
| Top speed | 110.0 km/h (68.4 mph) |
| Max RPM | 12000 |
| Compression | 7.8:1 |
| Bore x stroke | 70.0 x 64.0 mm (2.8 x 2.5 inches) |
| Fuel system | Carburettor. VM 36 SC |
| Ignition | CDI magneto |
| Lubrication system | Pre-mix |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet plate |
| Fuel consumption | 3.92 litres/100 km (25.5 km/l or 60.01 mpg) |
| Greenhouse gases | 90.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel |
| Front suspension | Oil shocks |
| Front wheel travel | 279 mm (11.0 inches) |
| Rear suspension | Monoshock |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 3.00-21 |
| Rear tire | 4.50-18 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 111.6 kg (246.0 pounds) |
| Power/weight ratio | 0.2339 HP/kg |
| Overall width | 832 mm (32.8 inches) |
| Ground clearance | 254 mm (10.0 inches) |
| Fuel capacity | 12.11 litres (3.20 US gallons) |
| Other specifications | |
| Color options | Sky blue/black |
| Starter | Kick |
