General information |
|
Motorcycle name
|

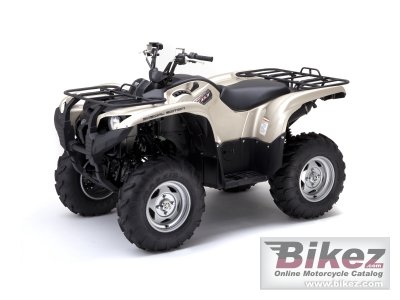

Yamaha Grizzly 700 FI Auto 4x4 EPS SE |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
686.0 ccm (41.86 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Gear-driven crankshaft balancer shaft and rubber-damper engine mounts |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
102.0 x 84.0 mm (4.0 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Yamaha Fuel Injection (YFI), 44mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
32-Bit ECU |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Yamaha On-Command pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone |
|
Front wheel travel
|
180 mm (7.1 inches) |
|
Rear suspension
|
Independent double wishbone |
|
Rear wheel travel
|
241 mm (9.5 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc. Hydraulic |
|
Rear brakes
|
Double disc. Hydraulic |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
293.9 kg (648.0 pounds) |
|
Seat height
|
904 mm (35.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1240 mm (48.8 inches) |
|
Overall length
|
2065 mm (81.3 inches) |
|
Overall width
|
1181 mm (46.5 inches) |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1250 mm (49.2 inches) |
|
Fuel capacity
|
20.06 litres (5.30 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Instruments
|
Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge, gear position, EPS and EFI function |
|
Light
|
Dual 35W Halogen multireflector headlights and 21W/5W brakelight |
|
Carrying capacity
|
Cargo racks |
|
Comments
|
Electric power steering. |
