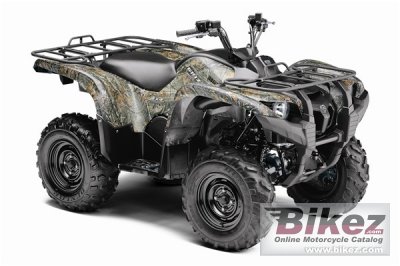

Yamaha Grizzly 700 FI Auto 4x4 20102010 Yamaha Grizzly 700 FI Auto 4x4 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Powerful 686cc liquid-cooled, four-stroke and light weight for best power-to-weight for a utility model in the industry. Yamaha Fuel Injection means instantaneous cold starts and optimal performance in all conditions and at all altitudes. |
| General information | |
|---|---|
| Model name | Yamaha Grizzly 700 FI Auto 4x4 |
| Model year | 2010 |
| Category | ATV |
| Price as new | US$ 9099. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 686.0 ccm (41.86 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 102.0 x 84.0 mm (4.0 x 3.3 inches) |
| Fuel system | Injection. Yamaha Fuel Injection (YFI), 44mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | 32-Bit ECU |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone, 5-way preload adjustment. |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Independent double wishbone, 5-way preload adjustment |
| Rear wheel travel | 241 mm (9.5 inches) |
| Front tire | 25/8-AT12 |
| Rear tire | 25/10-AT12 |
| Front brakes | Double disc |
| Rear brakes | Double disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 293.9 kg (648.0 pounds) |
| Seat height | 904 mm (35.6 inches) If adjustable, lowest setting. |
| Overall height | 1240 mm (48.8 inches) |
| Overall length | 2065 mm (81.3 inches) |
| Overall width | 1181 mm (46.5 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Fuel capacity | 20.06 litres (5.30 US gallons) |
| Other specifications | |
| Color options | Realtree AP Camo, Hunter Green, Steel Blue |
| Starter | Electric |
| Comments | Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive. |
