Yamaha's profilation of this bike |
Most powerful Grizzly ever: 686cc liquid-cooled, four-stroke engine and light weight add up to the best power-to-weight ratio of any utility model in the industry. |
General information |
Model name
|

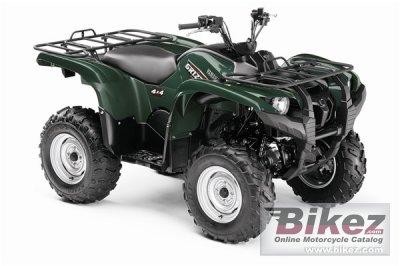

Yamaha Grizzly 700 FI Auto 4x4 |
Year model
|
2009 |
Type
|
ATV |
Price as new | US$ 7799. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
688.0 ccm (41.98 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
102.0 x 84.0 mm (4.0 x 3.3 inches) |
Fuel system
|
Injection. Yamaha Fuel Injection (YFI), 44mm |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
32-Bit ECU |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone |
Front wheel travel
|
127 mm (5.0 inches) |
Rear suspension
|
Independent double wishbone |
Rear wheel travel
|
127 mm (5.0 inches) |
Front tire
|
25/7-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Double disc |
Rear brakes
|
Double disc |
Physical measures and capacities |
Dry weight
|
272.2 kg (600.0 pounds) |
Seat height
|
904 mm (35.6 inches) If adjustable, lowest setting. |
Overall height
|
1240 mm (48.8 inches) |
Overall length
|
2065 mm (81.3 inches) |
Overall width
|
1181 mm (46.5 inches) |
Ground clearance
|
300 mm (11.8 inches) |
Wheelbase
|
1250 mm (49.2 inches) |
Fuel capacity
|
20.06 litres (5.30 US gallons) |
Other specifications |
Starter
|
Electric |
Comments
|
Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive. |
