Yamaha's profilation of this bike |
Powerful, versatile and extremely capable: the Grizzly 700is the ATV that simply won´t give up. With a 686cc liquid-cooled 4-stroke single-cylinder engine, it has the biggest and most powerful engine in the Yamaha ATV line-up. Yet, it´s still the lightest ATV in its class. |
General information |
Motorcycle name
|

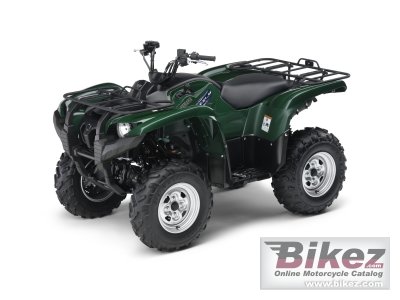

Yamaha Grizzly 700 |
Model year
|
2011 |
Category
|
ATV |
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
686.0 ccm (41.86 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
102.0 x 84.0 mm (4.0 x 3.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. EFI |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI, ECU |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Transmission type
|
Shaft drive (cardan) (final drive) |
Driveline
|
2WD/4WD/diff-lock. V-belt with all wheel engine braking, H/L/N/R/P. |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone, 5 position preload adjustment, 180 mm stroke |
Rear suspension
|
Independent double wishbone, 5 position preload adjustment, 230 mm stroke |
Front tire
|
25/8-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Double disc |
Rear brakes
|
Sealed multidisc |
Physical measures and capacities |
Seat height
|
905 mm (35.6 inches) If adjustable, lowest setting. |
Overall length
|
2065 mm (81.3 inches) |
Overall width
|
1180 mm (46.5 inches) |
Ground clearance
|
275 mm (10.8 inches) |
Wheelbase
|
1250 mm (49.2 inches) |
Fuel capacity
|
20.00 litres (5.28 US gallons) |
Oil capacity
|
2.40 litres (2.54 US quarts) |
Other specifications |
Comments
|
Optional Electronic Power Steering |
