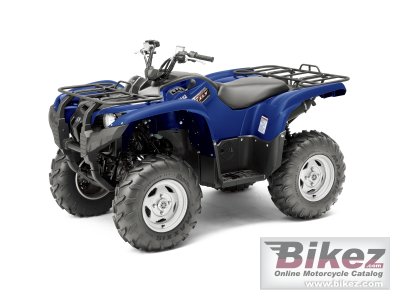

Yamaha Grizzly 550 FI Auto 4x4 EPS 20122012 Yamaha Grizzly 550 FI Auto 4x4 EPS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability. |
| General information | |
|---|---|
| Motorcycle name | Yamaha Grizzly 550 FI Auto 4x4 EPS |
| Year | 2012 |
| Category | ATV |
| Price as new | US$ 8699. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 558.0 ccm (34.05 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | Gear-driven crankshaft balancer shaft and rubber-damper engine mounts |
| Compression | 9.3:1 |
| Bore x stroke | 92.0 x 84.0 mm (3.6 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Yamaha Fuel Injection (YFI), 40mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI, 32-bit ECU |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Yamaha On-Command pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone |
| Front wheel travel | 127 mm (5.0 inches) |
| Rear suspension | Independent double wishbone |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc. Hydraulic |
| Rear brakes | Double disc. Hydraulic |
| Wheels | Aluminum wheels |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 293.9 kg (648.0 pounds) |
| Seat height | 904 mm (35.6 inches) If adjustable, lowest setting. |
| Overall height | 1240 mm (48.8 inches) |
| Overall length | 2065 mm (81.3 inches) |
| Overall width | 1181 mm (46.5 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Fuel capacity | 20.06 litres (5.30 US gallons) |
| Other specifications | |
| Color options | Hunter Green, Steel Blue, Realtree® AP™ Camouflage |
| Starter | Electric |
| Instruments | Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge and gear position |
| Light | Dual 35W Halogen multireflector headlights and 21W/5W brakelight |
| Factory warranty | 6 Month (Limited Factory Warranty) |
| Modifications compared to previous model | Gas charged rear shocks. |
