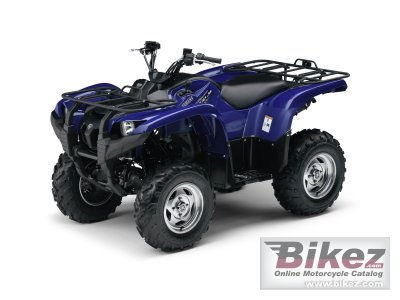

Yamaha Grizzly 550 20112011 Yamaha Grizzly 550 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Power in a compact package is what the Grizzly 550 EPS is all about - big power that comes courtesy of the 558cc liquid-cooled 4-stroke engine. Delivering high-traction torque, running costs nevertheless stay low. |
| General information | |
|---|---|
| Model name | Yamaha Grizzly 550 |
| Year of manufacture | 2011 |
| Type | ATV |
| Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 558.0 ccm (34.05 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.3:1 |
| Bore x stroke | 92.0 x 84.0 mm (3.6 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI, ECU |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | 2WD/4WD/diff-lock. Ultramatic® V-belt with all wheel engine braking, H/L/N/R/P. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone, 5 position preload adjustment, 180 mm stroke |
| Rear suspension | Independent double wishbone, 5 position preload adjustment, 230 mm stroke |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Rear brakes | Double disc |
| Physical measures and capacities | |
| Seat height | 905 mm (35.6 inches) If adjustable, lowest setting. |
| Overall height | 1240 mm (48.8 inches) |
| Overall length | 2065 mm (81.3 inches) |
| Overall width | 1180 mm (46.5 inches) |
| Ground clearance | 275 mm (10.8 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Oil capacity | 2.40 litres (2.54 US quarts) |
| Other specifications | |
| Color options | Dark green |
| Starter | Electric |
| Carrying capacity | Front rack: 45 kg. Rear rack: 85 kg. |
| Comments | Optional power steering. |
