General information |
Model
|

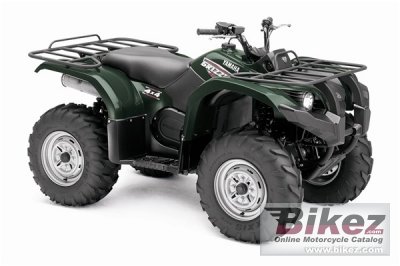

Yamaha Grizzly 450 Auto 4x4 IRS |
Year of manufacture
|
2009 |
Type
|
ATV |
Price as new | US$ 6499. MSRP depends on country, taxes, accessories, etc. |
Rating
|
4.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
421.0 ccm (25.69 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
10.0:1 |
Bore x stroke
|
84.5 x 75.0 mm (3.3 x 3.0 inches) |
Fuel system
|
Carburettor. Mikuni® 33mm BSR |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
DC-CDI |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone |
Front wheel travel
|
127 mm (5.0 inches) |
Rear suspension
|
Independent double wishbone |
Rear wheel travel
|
127 mm (5.0 inches) |
Front tire
|
25/7-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Double disc |
Rear brakes
|
Double disc |
Physical measures and capacities |
Dry weight
|
267.6 kg (590.0 pounds) |
Seat height
|
851 mm (33.5 inches) If adjustable, lowest setting. |
Overall length
|
1994 mm (78.5 inches) |
Ground clearance
|
274 mm (10.8 inches) |
Wheelbase
|
1232 mm (48.5 inches) |
Fuel capacity
|
15.14 litres (4.00 US gallons) |
Other specifications |
Color options
|
Black Metalic, Hunter Green, Steel Blue, Realtree® AP HD® Camouflage |
Starter
|
Electric |
Comments
|
Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive. |
