General information |
|
Model name
|

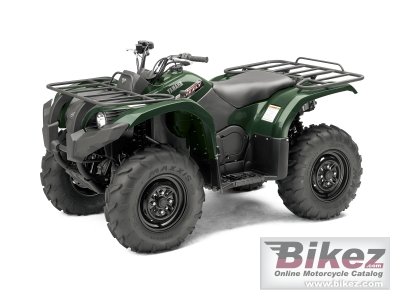

Yamaha Grizzly 450 Auto 4x4 EPS |
|
Model year
|
2012 |
|
Category
|
ATV |
| Price as new | US$ 7499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
421.0 ccm (25.69 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Gear-driven crankshaft balancer shaft and rubber-damper engine mounts |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
84.5 x 75.0 mm (3.3 x 3.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni 33mm BSR |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Yamaha On-Command pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone |
|
Front wheel travel
|
160 mm (6.3 inches) |
|
Rear suspension
|
Independent double wishbone |
|
Rear wheel travel
|
180 mm (7.1 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc. Hydraulic |
|
Rear brakes
|
Sealed multidisc. Hydraulic |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
281.2 kg (620.0 pounds) |
|
Seat height
|
841 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
1994 mm (78.5 inches) |
|
Overall width
|
1092 mm (43.0 inches) |
|
Ground clearance
|
274 mm (10.8 inches) |
|
Wheelbase
|
1232 mm (48.5 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
Hunter Green, Steel Blue, Realtree® AP™ Camouflage |
|
Starter
|
Electric |
|
Instruments
|
Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, gear position and fuel gauge |
|
Light
|
Dual 30W Krypton multireflector headlights and 21W/5W brakelight |
|
Factory warranty
|
6 Month (Limited Factory Warranty) |
