General information |
|
Model name
|

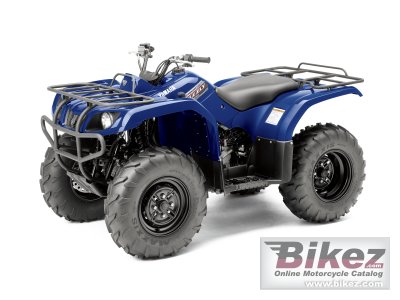

Yamaha Grizzly 350 Auto 4x4 IRS |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
| Price as new | US$ 6649. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
348.0 ccm (21.23 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
83.0 x 64.5 mm (3.3 x 2.5 inches) |
|
Fuel system
|
Carburettor. Mikuni 33mm BSR |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC-CDI |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Yamaha On-Command pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone |
|
Rear suspension
|
Independent double wishbone |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc. Hydraulic |
|
Rear brakes
|
Sealed multidisc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
274.9 kg (606.0 pounds) |
|
Seat height
|
831 mm (32.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
1994 mm (78.5 inches) |
|
Overall width
|
1095 mm (43.1 inches) |
|
Ground clearance
|
244 mm (9.6 inches) |
|
Wheelbase
|
1234 mm (48.6 inches) |
|
Fuel capacity
|
14.38 litres (3.80 US gallons) |
|
Other specifications |
|
Color options
|
Realtree AP Camo, Hunter Green, Steel Blue |
|
Starter
|
Electric |
|
Instruments
|
Speedometer, odometer |
|
Light
|
Dual 30W Krypton multireflector headlights and 21W/5W brakelight |
|
Factory warranty
|
6 Month (Limited Factory Warranty) |
