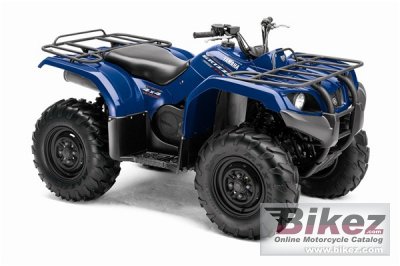

Yamaha Grizzly 350 Auto. 4x4 IRS 20102010 Yamaha Grizzly 350 Auto. 4x4 IRS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Full-featured ATV boasting IRS for superb terrainability, all-day comfort, and a sealed rear wet brake. Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling—even in 4WD. |
| General information | |
|---|---|
| Model | Yamaha Grizzly 350 Auto. 4x4 IRS |
| Year model | 2010 |
| Type | ATV |
| Price as new | US$ 6449. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 348.0 ccm (21.23 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 83.0 x 64.5 mm (3.3 x 2.5 inches) |
| Fuel system | Carburettor. Mikuni® 33mm BSR |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone |
| Front wheel travel | 127 mm (5.0 inches) |
| Rear suspension | Independent double wishbone |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 25/8-AT12 |
| Rear tire | 25/10-AT12 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 274.9 kg (606.0 pounds) |
| Seat height | 831 mm (32.7 inches) If adjustable, lowest setting. |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 1994 mm (78.5 inches) |
| Overall width | 1095 mm (43.1 inches) |
| Ground clearance | 244 mm (9.6 inches) |
| Wheelbase | 1234 mm (48.6 inches) |
| Fuel capacity | 14.38 litres (3.80 US gallons) |
| Other specifications | |
| Color options | Realtree AP Camo, Hunter Green, Steel Blue |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
