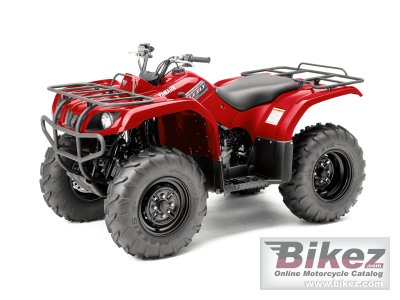

Yamaha Grizzly 350 Auto 4x4 20122012 Yamaha Grizzly 350 Auto 4x4 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The power-packed, full-featured Grizzly 350 Automatic 4x4 solid axle carries a lot of advanced Yamaha ATV technology in an affordable package. |
| General information | |
|---|---|
| Motorcycle name | Yamaha Grizzly 350 Auto 4x4 |
| Model year | 2012 |
| Category | ATV |
| Price as new | US$ 5599. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 348.0 ccm (21.23 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 83.0 x 64.5 mm (3.3 x 2.5 inches) |
| Fuel system | Carburettor. Mikuni 33mm BSR |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC - CDI |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Yamaha On-Command pushbutton; 2WD, 4WD; shaft drive |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone |
| Front wheel travel | 160 mm (6.3 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 180 mm (7.1 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc. Hydraulic |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 257.6 kg (568.0 pounds) |
| Seat height | 828 mm (32.6 inches) If adjustable, lowest setting. |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 1984 mm (78.1 inches) |
| Overall width | 1085 mm (42.7 inches) |
| Ground clearance | 246 mm (9.7 inches) |
| Wheelbase | 1232 mm (48.5 inches) |
| Fuel capacity | 14.38 litres (3.80 US gallons) |
| Other specifications | |
| Color options | Realtree AP Camo, Hunter Green, Steel Blue |
| Starter | Electric |
| Light | Dual 30W Krypton multireflector headlights and 21W/5W brakelight |
| Factory warranty | 6 Month (Limited Factory Warranty) |
