General information |
|
Model name
|

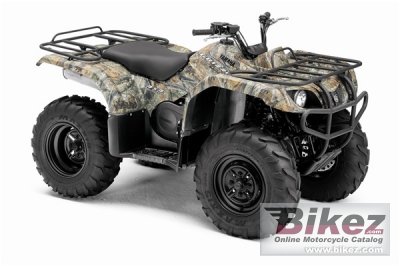

Yamaha Grizzly 350 Auto 4x4 |
|
Year
|
2010 |
|
Category
|
ATV |
| Price as new | US$ 5849. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
348.0 ccm (21.23 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
83.0 x 64.5 mm (3.3 x 2.5 inches) |
|
Fuel system
|
Carburettor. Mikuni® 33mm BSR |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC - CDI |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone |
|
Rear suspension
|
Swingarm |
|
Front tire
|
25/8-AT12 |
|
Rear tire
|
25/10-AT12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
257.6 kg (568.0 pounds) |
|
Seat height
|
828 mm (32.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
1984 mm (78.1 inches) |
|
Overall width
|
1085 mm (42.7 inches) |
|
Ground clearance
|
246 mm (9.7 inches) |
|
Wheelbase
|
1232 mm (48.5 inches) |
|
Fuel capacity
|
14.38 litres (3.80 US gallons) |
|
Other specifications |
|
Color options
|
Camo, green, blue |
|
Starter
|
Electric & kick |
|
Comments
|
Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive
|
