General information |
Motorcycle name
|

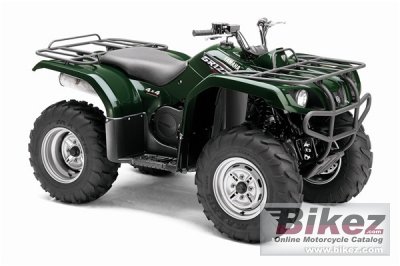

Yamaha Grizzly 350 Auto 4x4 |
Year model
|
2009 |
Type
|
ATV |
Price as new | US$ 5199. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
348.0 ccm (21.23 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
83.0 x 64.5 mm (3.3 x 2.5 inches) |
Fuel system
|
Carburettor. Mikuni® 33mm BSR |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
DC - CDI |
Cooling system
|
Oil & air |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone |
Rear suspension
|
Swingarm |
Front tire
|
25/7-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Double disc |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
243.1 kg (536.0 pounds) |
Seat height
|
828 mm (32.6 inches) If adjustable, lowest setting. |
Overall height
|
1120 mm (44.1 inches) |
Overall length
|
1984 mm (78.1 inches) |
Overall width
|
1085 mm (42.7 inches) |
Ground clearance
|
246 mm (9.7 inches) |
Wheelbase
|
1232 mm (48.5 inches) |
Fuel capacity
|
14.38 litres (3.80 US gallons) |
Other specifications |
Color options
|
Steel Blue, Hunter Green, Black Metalic, Realtree® AP HD® Camouflage |
Starter
|
Electric |
Comments
|
Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive. |
