Yamaha's profilation of this bike |

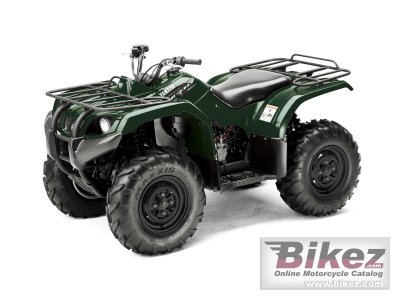

Ruling over the countryside is what the Grizzly 350 4WD is built for. Harnessing the full force of the robust 348cc air/oil-cooled 4-stroke engine makes light work of steep hills and climbs. While the smooth Ultramatic® automatic transmission is ideal for taking on worsening ground conditions. |
General information |
Motorcycle name
|
Yamaha Grizzly 350 |
Year model
|
2011 |
Type
|
ATV |
Rating
|
3.1 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
348.0 ccm (21.23 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
83.0 x 64.5 mm (3.3 x 2.5 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor. BSR33/1 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
DC-CDI |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Transmission type
|
Shaft drive (cardan) (final drive) |
Driveline
|
2WD/4WD. Ultramatic® V-belt with front- and rear wheel engine braking, F/N/R. |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone, 5 position preload adjustment, 160 mm stroke |
Rear suspension
|
Swingarm, 5 position preload adjustment, 180 mm stroke |
Front tire
|
25/8-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Double disc |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Seat height
|
827 mm (32.6 inches) If adjustable, lowest setting. |
Overall height
|
1120 mm (44.1 inches) |
Overall length
|
1984 mm (78.1 inches) |
Overall width
|
1085 mm (42.7 inches) |
Ground clearance
|
180 mm (7.1 inches) |
Wheelbase
|
1233 mm (48.5 inches) |
Fuel capacity
|
13.50 litres (3.57 US gallons) |
Oil capacity
|
3.10 litres (3.28 US quarts) |
Other specifications |
Color options
|
Red |
Starter
|
Electric |
Carrying capacity
|
Front rack: 40 kg. Rear rack: 80 kg. |
