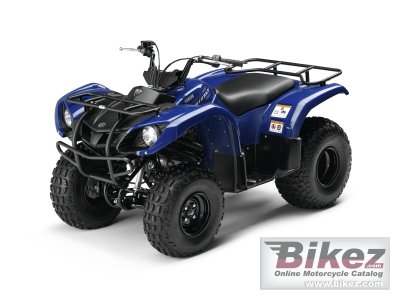

2012 Yamaha Grizzly 125 Automatic

Yamaha Grizzly 125 Automatic 2012


2012 Yamaha Grizzly 125 Automatic specifications, pictures, reviews and rating

Yamaha's profilation of this bike
Wide front and rear fenders with integrated full floorboards provide mud and splash protection for a dry, comfortable ride. Brawny 20x7-8 front and 22x10-8 rear knobby tires offer excellent traction and boost ground clearance.

General information
Motorcycle name Yamaha Grizzly 125 Automatic
Year of manufacture 2012
Type ATV
Price as newUS$ 3599. MSRP depends on country, taxes, accessories, etc.
Rating Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Engine size 124.0 ccm (7.57 cubic inches)
Type of engine Single cylinder, four-stroke
Compression 9.0:1
Bore x stroke 49.0 x 66.0 mm (1.9 x 2.6 inches)
Fuel system Carburettor. Mikuni 18mm
Fuel control Single Overhead Cams (SOHC)
Ignition DC - CDI
Cooling system Air
Gearbox Automatic
Transmission type Chain (final drive)
Driveline 2WD; O-ring chain
Chassis, suspension, brakes and wheels
Front suspension Independent wishbone, 2.8-in travel
Rear suspension Swingarm, 3.2-in travel
Front tire 20/7-8
Rear tire 22/10-8
Front brakes Expanding brake (drum brake)
Rear brakes Expanding brake (drum brake)
Physical measures and capacities
Weight incl. oil, gas, etc 152.0 kg (335.0 pounds)
Seat height 686 mm (27.0 inches) If adjustable, lowest setting.
Overall height 980 mm (38.6 inches)
Overall length 1699 mm (66.9 inches)
Overall width 991 mm (39.0 inches)
Ground clearance 145 mm (5.7 inches)
Wheelbase 1080 mm (42.5 inches)
Fuel capacity 7.57 litres (2.00 US gallons)
Other specifications
Color options Steel Blue
Starter Electric
Electrical Maintenance-free 12-amp-hour battery
Light Dual 30W Krypton multireflector headlights; 21W/5W brakelight
Factory warranty 6 Month (Limited Factory Warranty)
