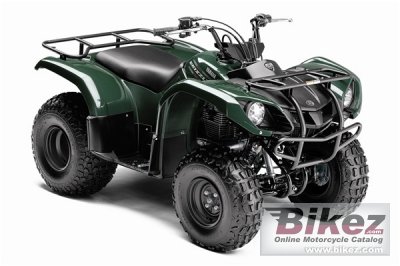

Yamaha Grizzly 125 Automatic 20102010 Yamaha Grizzly 125 Automatic specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Big Grizzly styling and tough engineering make getting there easy. Fully automatic V-belt transmission with forward, neutral and reverse is simple to operate and eliminates the need for shifting. |
| General information | |
|---|---|
| Model | Yamaha Grizzly 125 Automatic |
| Model year | 2010 |
| Category | ATV |
| Price as new | US$ 3499. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 49.0 x 66.0 mm (1.9 x 2.6 inches) |
| Fuel system | Carburettor. Mikuni® 18mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC - CDI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent wishbone, 2.8-in travel |
| Rear suspension | Swingarm, 3.2-in travel |
| Front tire | 20/7-8 |
| Rear tire | 22/10-8 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 152.0 kg (335.0 pounds) |
| Seat height | 686 mm (27.0 inches) If adjustable, lowest setting. |
| Overall height | 980 mm (38.6 inches) |
| Overall length | 1699 mm (66.9 inches) |
| Overall width | 991 mm (39.0 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1080 mm (42.5 inches) |
| Fuel capacity | 7.57 litres (2.00 US gallons) |
| Other specifications | |
| Color options | Green |
| Starter | Electric & kick |
| Comments | 2WD; O-ring chain |
