General information |
|
Model name
|

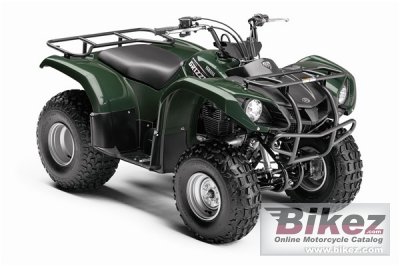

Yamaha Grizzly 125 Automatic |
|
Year of manufacture
|
2009 |
|
Type
|
ATV |
| Price as new | US$ 3199. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
49.0 x 66.0 mm (1.9 x 2.6 inches) |
|
Fuel system
|
Carburettor. Mikuni® 18mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC - CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent wishbone, 2.8-in travel |
|
Rear suspension
|
Swingarm, 3.2-in travel |
|
Front tire
|
20/7-12 |
|
Rear tire
|
22/10-12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
138.8 kg (306.0 pounds) |
|
Seat height
|
686 mm (27.0 inches) If adjustable, lowest setting. |
|
Overall height
|
980 mm (38.6 inches) |
|
Overall length
|
1699 mm (66.9 inches) |
|
Overall width
|
991 mm (39.0 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1080 mm (42.5 inches) |
|
Fuel capacity
|
7.57 litres (2.00 US gallons) |
|
Other specifications |
|
Color options
|
Hunter Green, Black Metallic |
|
Starter
|
Electric |
|
Comments
|
Drivetrain: 2WD; O-ring chain |
