| General information |
|---|

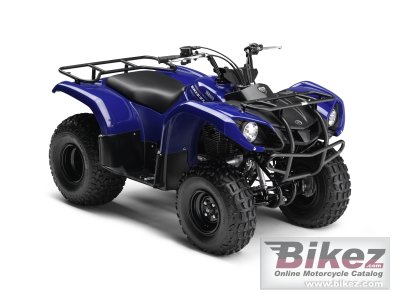

| Model: | Yamaha Grizzly 125 |
| Year: | 2011 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.0 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.0:1 |
| Bore x stroke: | 49.0 x 66.0 mm (1.9 x 2.6 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor. Mikuni VM18SH1 |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | DC-CDI |
| Lubrication system: | Wet sump |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Driveline: | 2WD. V-Belt Automatic, F/N/R . O-ring chain. |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent wishbone, 70 mm stroke |
| Rear suspension: | Swingarm, 80 mm stroke |
| Front tire: | 20/7-8 |
| Rear tire: | 22/10-18 |
| Front brakes: | Double disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 152.0 kg (335.1 pounds) |
| Seat height: | 685 mm (27.0 inches) If adjustable, lowest setting. |
| Overall height: | 980 mm (38.6 inches) |
| Overall length: | 1700 mm (66.9 inches) |
| Overall width: | 990 mm (39.0 inches) |
| Ground clearance: | 145 mm (5.7 inches) |
| Wheelbase: | 1080 mm (42.5 inches) |
| Fuel capacity: | 7.00 litres (1.85 gallons) |
| Oil capacity: | 1.50 litres (1.59 US quarts) |
| Other specifications |
|---|
| Color options: | Blue |
| Starter: | Electric |
| Update specs | Report missing specs or required updates. |
