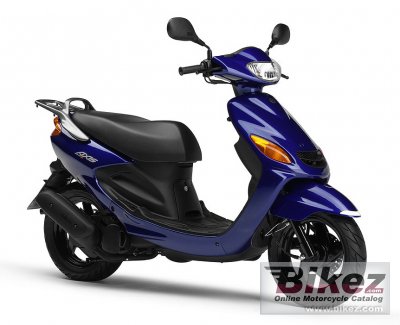

Yamaha Grand Axis 100 20112011 Yamaha Grand Axis 100 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Yamaha Grand Axis 100 |
| Year | 2011 |
| Category | Scooter |
| Rating | 3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 101.0 ccm (6.16 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 9.9 HP (7.2 kW)) @ 7000 RPM |
| Bore x stroke | 52.0 x 47.6 mm (2.0 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI. |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel |
| Front suspension | 26mm conventional cartridge forks |
| Rear suspension | Monoshock |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Diameter | 155 mm (6.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 135 mm (5.3 inches) |
| Physical measures and capacities | |
| Dry weight | 93.0 kg (205.0 pounds) |
| Power/weight ratio | 0.1060 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1275 mm (50.2 inches) |
| Fuel capacity | 6.50 litres (1.72 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
