General information |
|
Model name
|

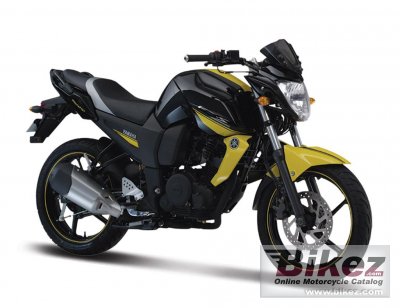

Yamaha FZS |
|
Model year
|
2009 |
|
Category
|
Naked bike |
| Price as new | US$ 1360. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
153.0 ccm (9.34 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
14.0 HP (10.2 kW)) @ 7500 RPM |
|
Torque
|
14.0 Nm (1.4 kgf-m or 10.3 ft.lbs) @ 6000 RPM |
|
Top speed
|
130.0 km/h (80.8 mph) |
|
Max RPM
|
12000 |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
58.0 x 57.9 mm (2.3 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Type BS26 Carb |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Constant mesh wet multiplate |
|
Fuel consumption
|
2.50 litres/100 km (40.0 km/l or 94.09 mpg) |
|
Greenhouse gases
|
58.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Single midship with plastic cover |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond |
|
Front suspension
|
telescopic |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
monocross |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
100/80-17 |
|
Rear tire
|
140/60-R17 |
|
Front brakes
|
Single disc. 2 piston hydraulic |
|
Diameter
|
267 mm (10.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
126.0 kg (277.8 pounds) |
|
Weight incl. oil, gas, etc
|
137.0 kg (302.0 pounds) |
|
Power/weight ratio
|
0.1111 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1045 mm (41.1 inches) |
|
Overall length
|
1975 mm (77.8 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
160 mm (6.3 inches) |
|
Wheelbase
|
1335 mm (52.6 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Reserve fuel capacity
|
1.80 litres (0.48 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Yellow Streak, Silver Tech |
|
Starter
|
Electric |
|
Modifications compared to previous model
|
Modified console with a aerodynamic cover. New graphics work compared to FZ 16. |
