General information |
|
Motorcycle name
|

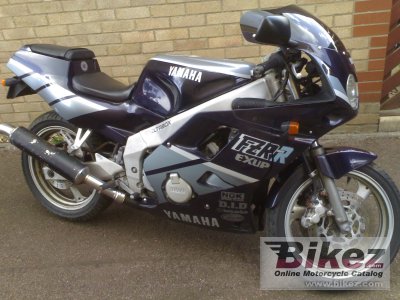

Yamaha FZR 250 |
|
Year
|
1988 |
|
Category
|
Sport |
|
Rating
|
4.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
250.0 ccm (15.26 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power
|
45.0 HP (32.8 kW)) @ 14500 RPM |
|
Torque
|
25.0 Nm (2.5 kgf-m or 18.4 ft.lbs) @ 11500 RPM |
|
Top speed
|
180.0 km/h (111.8 mph) |
|
Max RPM
|
17000 |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
48.0 x 34.5 mm (1.9 x 1.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. MIKUNI BDS26 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet plate |
|
Exhaust system
|
4 in to 1 with EXUP valve |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Rake (fork angle)
|
25.5° |
|
Trail
|
88 mm (3.5 inches) |
|
Front tire
|
100/80-17 52H |
|
Rear tire
|
120/80-17 61H |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
141.0 kg (310.9 pounds) |
|
Power/weight ratio
|
0.3191 HP/kg |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
2010 mm (79.1 inches) |
|
Overall width
|
680 mm (26.8 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1375 mm (54.1 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Reserve fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Only released in Japan but used bikes were exported to many countries as ´grey import´ |
