General information |
|
Model
|

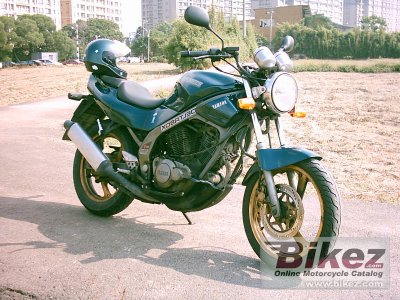

Yamaha FZ 150 N |
|
Year of manufacture
|
1992 |
|
Type
|
Naked bike |
| Price as new | US$ 3200. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
149.0 ccm (9.09 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
17.4 HP (12.7 kW)) @ 11000 RPM |
|
Top speed
|
130.0 km/h (80.8 mph) |
|
Maximum RPM
|
12000 |
|
Compression
|
10.7:1 |
|
Bore x stroke
|
45.0 x 47.0 mm (1.8 x 1.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. BDS26/2/MIKUNI |
|
Fuel control
|
Overhead Cams (OHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet plate |
|
Fuel consumption
|
3.00 litres/100 km (33.3 km/l or 78.41 mpg) |
|
Greenhouse gases
|
69.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Single stainless steel pipes |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
diamond-shaped Aluminum frame |
|
Rake (fork angle)
|
25.5° |
|
Trail
|
89 mm (3.5 inches) |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear wheel travel
|
112 mm (4.4 inches) |
|
Front tire
|
90/80-17 |
|
Rear tire
|
100/80-17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
148.0 kg (326.3 pounds) |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1065 mm (41.9 inches) |
|
Overall length
|
1965 mm (77.4 inches) |
|
Overall width
|
680 mm (26.8 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1345 mm (53.0 inches) |
|
Fuel capacity
|
10.00 litres (2.64 US gallons) |
|
Reserve fuel capacity
|
1.90 litres (0.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
Taiwan version of FZ. Engine is transplated from SRV250. |
