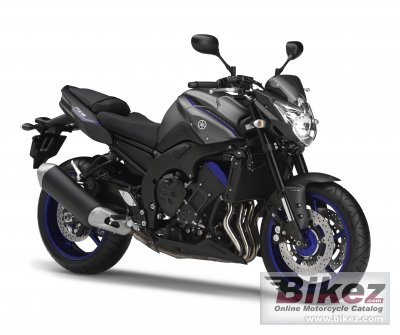

Yamaha FZ8N ABS 20132013 Yamaha FZ8N ABS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| These dynamic new sports machines are built on a new 779cc engine and all-aluminium frame. The engine offers a balance of middleweight accessibility with big-bore power and instant grunt throughout the rev range. |
| General information | |
|---|---|
| Model | Yamaha FZ8N ABS |
| Year | 2013 |
| Category | Sport |
| Rating | 3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 779.0 ccm (47.53 cubic inches) |
| Engine type | In-line four, four-stroke |
| Engine details | Forward-inclined parallel 4-cylinder |
| Compression | 12.0:1 |
| Bore x stroke | 68.0 x 53.6 mm (2.7 x 2.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital TCI: Transistor Controlled Ignition with 32-bit ECU |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiplate |
| Driveline | O-ring chain |
| Fuel consumption | 5.91 litres/100 km (16.9 km/l or 39.80 mpg) |
| Greenhouse gases | 137.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium diamond |
| Rake (fork angle) | 25.0° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm (link) , single shock |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. ABS. Floating discs w/4-piston calipers |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 216.0 kg (476.2 pounds) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1064 mm (41.9 inches) |
| Overall length | 2141 mm (84.3 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1461 mm (57.5 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | White, black |
| Starter | Electric |
| Electrical | 12 Volt |
| Update specs | Report missing specs or required updates. |
