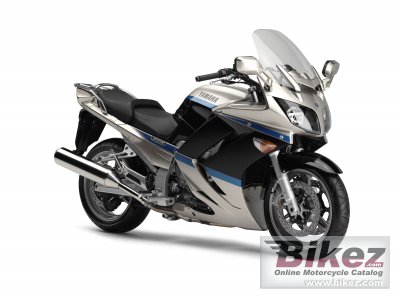

Yamaha FJR 1300 AS 20092009 Yamaha FJR 1300 AS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| In addition to featuring all of the strengths of the award-winning FJR1300A, the FJR1300AS has one additional piece of Yamaha technology that puts it in a class of its own. This advanced technology is YCC-S (Yamaha Chip Controlled – Shift) – and the FJR1300AS is the first production Yamaha to benefit from this electronically-controlled clutchless gear shift system. |
| General information | |
|---|---|
| Model | Yamaha FJR 1300 AS |
| Year model | 2009 |
| Type | Touring |
| Rating | 3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1298.0 ccm (79.20 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Effect | 141.5 HP (103.3 kW)) |
| Torque | 134.4 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 7000 RPM |
| Compression | 10.8:1 |
| Bore x stroke | 79.0 x 66.2 mm (3.1 x 2.6 inches) |
| Fuel system | Injection. Electronic Fuel Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiple-disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium, diamond shaped |
| Trail | 109 mm (4.3 inches) |
| Front suspension | Telescopic forks, Ø 48 mm |
| Front wheel travel | 135 mm (5.3 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 295.0 kg (650.4 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1315 mm (51.8 inches) |
| Overall length | 2230 mm (87.8 inches) |
| Overall width | 750 mm (29.5 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1545 mm (60.8 inches) |
| Fuel capacity | 25.00 litres (6.61 US gallons) |
| Oil capacity | 4.90 litres (5.18 US quarts) |
| Other specifications | |
| Color options | Black, gray, silver |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha FJR 1300 AS discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Yamaha FJR 1300 AS for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Yamaha bike | |
Design and look for the 2009 Yamaha FJR 1300 AS:  (87.4 out of 100)Click here for complete rating. |
|
