Yamaha FJR 1300 A 20042004 Yamaha FJR 1300 A specifications, pictures, reviews and rating |

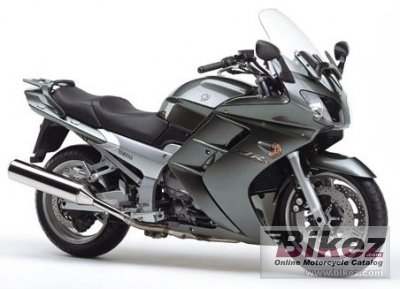

 2004 Yamaha FJR 1300 A. Picture credits - Yamaha. Submit more pictures. |
| General information | |
|---|---|
| Motorcycle name | Yamaha FJR 1300 A |
| Year model | 2004 |
| Type | Sport touring |
| Rating | 4.1 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1298.0 ccm (79.20 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Effect | 141.5 HP (103.3 kW)) @ 8000 RPM |
| Torque | 134.4 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 7000 RPM |
| Compression | 10.8:1 |
| Bore x stroke | 79.0 x 66.2 mm (3.1 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork, 48mm tubes |
| Front wheel travel | 135 mm (5.3 inches) |
| Rear suspension | Link-type swingarm |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Dry weight | 251.0 kg (553.4 pounds) |
| Power/weight ratio | 0.5636 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1435 mm (56.5 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 760 mm (29.9 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1515 mm (59.6 inches) |
| Other specifications | |
| Color options | Silver storm, Galaxy blue |
| Comments | ABS brakes |
