General information |
Model name
|

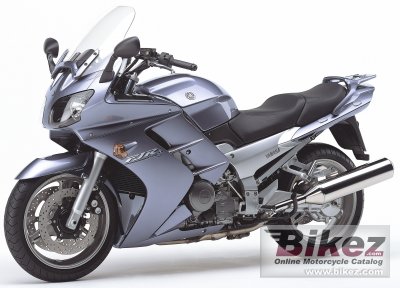

Yamaha FJR 1300 |
Year model
|
2005 |
Type
|
Sport touring |
Price as new | US$ 11799. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Engine size
|
1298.0 ccm (79.20 cubic inches) |
Type of engine
|
In-line four, four-stroke |
Compression
|
10.8:1 |
Bore x stroke
|
79.0 x 66.2 mm (3.1 x 2.6 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
48mm Soqi telescopic fork w/adjustable preload, compression and rebound damping |
Front wheel travel
|
137 mm (5.4 inches) |
Rear suspension
|
Single shock, link-type, w/adjustable preload and rebound damping |
Rear wheel travel
|
122 mm (4.8 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
282 mm (11.1 inches) |
Physical measures and capacities |
Seat height
|
818 mm (32.2 inches) If adjustable, lowest setting. |
Overall height
|
1438 mm (56.6 inches) |
Overall length
|
2230 mm (87.8 inches) |
Overall width
|
770 mm (30.3 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1539 mm (60.6 inches) |
Fuel capacity
|
24.98 litres (6.60 US gallons) |
Other specifications |
Color options
|
Galaxy Blue |
Starter
|
Electric |
