General information |
|
Motorcycle name
|

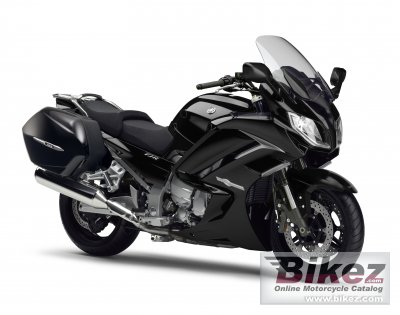

Yamaha FJR1300AS |
|
Model year
|
2013 |
|
Category
|
Sport touring |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1298.0 ccm (79.20 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
107.5 HP (78.5 kW)) @ 8000 RPM |
|
Torque
|
138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 RPM |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
79.0 x 66.2 mm (3.1 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCI: Transistor Controlled Ignition |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Constant mesh |
|
Fuel consumption
|
6.53 litres/100 km (15.3 km/l or 36.02 mpg) |
|
Greenhouse gases
|
151.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium, Diamond Shaped |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Upside-down telescopic fork, Ø 48 mm tube, adjustable preload, compression and rebound damping |
|
Front wheel travel
|
135 mm (5.3 inches) |
|
Rear suspension
|
Linked monoshock with spring preload adjustment |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Hydraulic |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
296.0 kg (652.6 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1326 mm (52.2 inches) |
|
Overall length
|
2230 mm (87.8 inches) |
|
Overall width
|
749 mm (29.5 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1544 mm (60.8 inches) |
|
Fuel capacity
|
24.98 litres (6.60 US gallons) |
|
Oil capacity
|
4.90 litres (5.18 US quarts) |
|
Other specifications |
|
Color options
|
Bronze, black |
|
Starter
|
Electric |
|
Comments
|
Windshield. |
