General information |
|
Model name
|

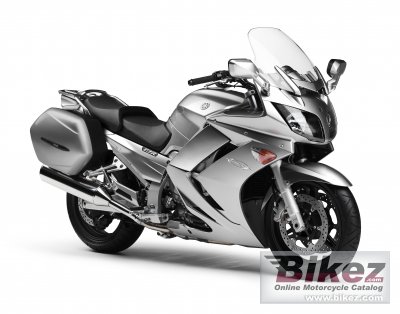

Yamaha FJR1300AS |
|
Year
|
2012 |
|
Category
|
Sport touring |
|
Rating
|
3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1298.0 ccm (79.20 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Engine details
|
Forward-inclined parallel cylinders |
|
Power
|
143.0 HP (104.4 kW)) @ 8000 RPM |
|
Torque
|
134.4 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 7000 RPM |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
79.0 x 66.2 mm (3.1 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Clutchless gear shift |
|
Driveline
|
Constant Mesh |
|
Emission details
|
3-way catalytic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond Shaped, Aluminium |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Telescopic forks, 48 mm |
|
Front wheel travel
|
135 mm (5.3 inches) |
|
Rear suspension
|
Swingarm, (link suspension) |
|
Rear wheel travel
|
124 mm (4.9 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
295.0 kg (650.4 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1315 mm (51.8 inches) |
|
Overall length
|
2230 mm (87.8 inches) |
|
Overall width
|
750 mm (29.5 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1545 mm (60.8 inches) |
|
Fuel capacity
|
25.00 litres (6.61 US gallons) |
|
Oil capacity
|
4.90 litres (5.18 US quarts) |
|
Other specifications |
|
Color options
|
Silver tech, Midnight black |
|
Starter
|
Electric |
|
Comments
|
Adjustable windscreen, handlebars and seat |
