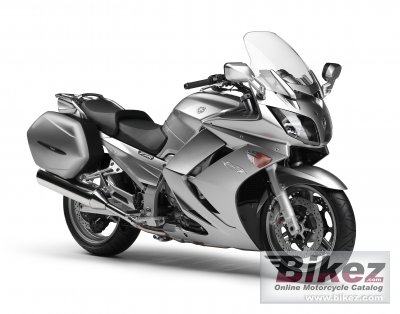

Yamaha FJR1300A 20122012 Yamaha FJR1300A specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Standard equipment Unified Braking System w/ABS: The front brake lever activates six of the eight front braking pistons; the rear brake pedal activates two rear pistons and the other two front pistons—provides balanced anti-lock braking in all conditions. |
| General information | |
|---|---|
| Model name | Yamaha FJR1300A |
| Year model | 2012 |
| Type | Sport touring |
| Price as new | US$ 15590. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1298.0 ccm (79.20 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Compression | 10.8:1 |
| Bore x stroke | 79.0 x 66.2 mm (3.1 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI: Transistor Controlled Ignition |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiplate |
| Fuel consumption | 6.03 litres/100 km (16.6 km/l or 39.01 mpg) |
| Greenhouse gases | 139.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 26.0° |
| Trail | 109 mm (4.3 inches) |
| Front suspension | 48mm fork; fully adjustable, 5.3-in travel |
| Front wheel travel | 135 mm (5.3 inches) |
| Rear suspension | Single shock; adjustable preload and rebound damping, 4.9-in travel |
| Rear wheel travel | 124 mm (4.9 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. UBS ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. UBS ABS |
| Diameter | 282 mm (11.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 292.1 kg (644.0 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1450 mm (57.1 inches) |
| Overall length | 2230 mm (87.8 inches) |
| Overall width | 749 mm (29.5 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1544 mm (60.8 inches) |
| Fuel capacity | 24.98 litres (6.60 US gallons) |
| Other specifications | |
| Color options | Cobalt Blue |
| Starter | Electric |
| Factory warranty | 1 Year (Limited Factory Warranty) |
