General information |
Motorcycle name
|

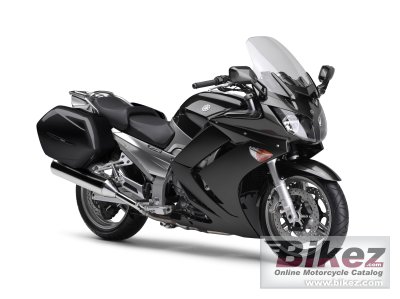

Yamaha FJR1300A |
Year
|
2009 |
Category
|
Sport touring |
Price as new | US$ 14490. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Displacement
|
1298.0 ccm (79.20 cubic inches) |
Engine type
|
In-line four, four-stroke |
Compression
|
10.8:1 |
Bore x stroke
|
79.0 x 66.2 mm (3.1 x 2.6 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
TCI: Transistor Controlled Ignition |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Fuel consumption
|
6.03 litres/100 km (16.6 km/l or 39.01 mpg) |
Greenhouse gases
|
139.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
26.0° |
Trail
|
109 mm (4.3 inches) |
Front suspension
|
48mm fork |
Front wheel travel
|
137 mm (5.4 inches) |
Rear suspension
|
Single shock |
Rear wheel travel
|
122 mm (4.8 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
282 mm (11.1 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
290.8 kg (641.0 pounds) |
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
Overall height
|
1331 mm (52.4 inches) |
Overall length
|
2240 mm (88.2 inches) |
Overall width
|
744 mm (29.3 inches) |
Wheelbase
|
1544 mm (60.8 inches) |
Fuel capacity
|
24.98 litres (6.60 US gallons) |
Other specifications |
Color options
|
Raven |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
