General information |
|
Model name
|

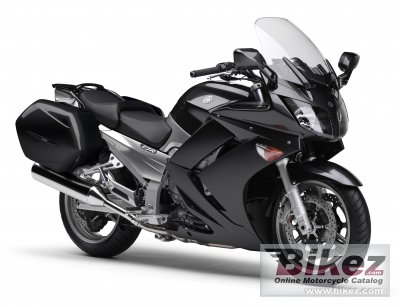

Yamaha FJR1300A |
|
Year of manufacture
|
2008 |
|
Type
|
Sport touring |
| Price as new | US$ 13899. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1298.0 ccm (79.20 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Output
|
145.0 HP (105.8 kW)) @ 8500 RPM |
|
Torque
|
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 6000 RPM |
|
Top speed
|
245.0 km/h (152.2 mph) |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
79.0 x 66.2 mm (3.1 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium twin spar |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
48 mm fork |
|
Front wheel travel
|
137 mm (5.4 inches) |
|
Rear suspension
|
Single shock |
|
Rear wheel travel
|
122 mm (4.8 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
264.9 kg (584.0 pounds) |
|
Weight incl. oil, gas, etc
|
292.0 kg (643.7 pounds) |
|
Power/weight ratio
|
0.5474 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1331 mm (52.4 inches) |
|
Overall length
|
2240 mm (88.2 inches) |
|
Overall width
|
744 mm (29.3 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1539 mm (60.6 inches) |
|
Fuel capacity
|
24.98 litres (6.60 US gallons) |
|
Oil capacity
|
4.00 litres (4.23 US quarts) |
|
Other specifications |
|
Color options
|
Raven Black |
|
Starter
|
Electric |
|
Modifications compared to previous model
|
For 2008, the FJR1300A gets a new ABS system, new scratch-resistant hard Windshield coating, a new windshield bracket design and new grips.
|
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Oil filter
|
HiFloFiltro HF148 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
3.00 litres (0.79 US gallons) |
|
Battery
|
YT14B-BS |
|
Spark plugs
|
NGK, CR8E |
|
Idle speed
|
1050 +/- 50 RPM |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
48 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
