General information |
|
Motorcycle name
|

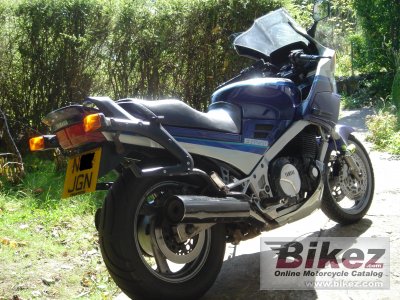

Yamaha FJ 1200 |
|
Model year
|
1995 |
|
Category
|
Sport touring |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1188.0 ccm (72.49 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
125.0 HP (91.2 kW)) @ 9000 RPM |
|
Torque
|
107.9 Nm (11.0 kgf-m or 79.6 ft.lbs) @ 7500 RPM |
|
Top speed
|
244.3 km/h (151.8 mph) |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
77.0 x 63.8 mm (3.0 x 2.5 inches) |
|
Fuel system
|
Carburettor. Mikuni, 36 mm |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
TCI (Transistor Controlled Ignition) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet, multiple discs, hydraulic operated |
|
Fuel consumption
|
6.90 litres/100 km (14.5 km/l or 34.09 mpg) |
|
Greenhouse gases
|
160.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel, twin spar |
|
Front suspension
|
Telescopic with 3-way preload and damping adjustment |
|
Rear suspension
|
Monocross monoshock 5-way preload and 5-way damping adjustment |
|
Front tire
|
120/70-17 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
245.0 kg (540.1 pounds) |
|
Weight incl. oil, gas, etc
|
259.0 kg (571.0 pounds) |
|
Power/weight ratio
|
0.5102 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
22.00 litres (5.81 US gallons) |
|
Oil capacity
|
4.20 litres (4.44 US quarts) |
|
Other specifications |
|
Color options
|
Blue/white, red/white |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-40 |
|
Oil filter
|
K & N KN-401 |
|
Brake fluid
|
DOT 4 |
|
Battery
|
YB14L-A2 |
|
Spark plugs
|
NGK DPR8EA-9, NGK DPR8EIX-9 |
|
Idle speed
|
950-1050 RPM |
|
Chain size
|
530 |
|
Chain links
|
110 |
|
Sprockets
|
17/40 (front/rear) |
|
Tire pressure front
|
33 PSI (2.3 Bar or 230 kPa) |
|
Tire pressure rear
|
38 PSI (2.6 Bar or 260 kPa) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
