General information |
|
Model
|

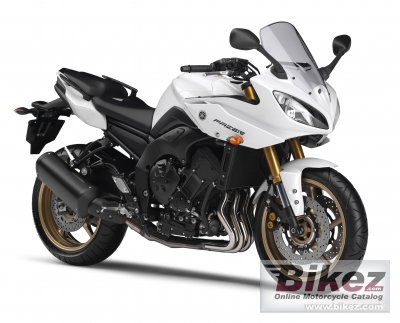

Yamaha Fazer 8 |
|
Model year
|
2013 |
|
Category
|
Sport |
|
Rating
|
3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
779.0 ccm (47.53 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
104.7 HP (76.4 kW)) @ 10000 RPM |
|
Torque
|
82.0 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 8000 RPM |
|
Top speed
|
215.0 km/h (133.6 mph) |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
68.0 x 53.6 mm (2.7 x 2.1 inches) |
|
Fuel system
|
Injection. Electronic Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Transistorized coil ignition |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disc coil spring, Wet |
|
Driveline
|
Front: |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Black, powder-coated aluminium die-cast, diamond shaped |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
Upside-down telescopic fork, Ø 43 mm inner tube |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Linked monoshock with spring preload adjustment |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Hydraulic. Two-piston calipers. Optional ABS. |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Hydraulic. Optional ABS. |
|
Diameter
|
267 mm (10.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
211.0 kg (465.2 pounds) |
|
Weight incl. oil, gas, etc
|
215.0 kg (474.0 pounds) |
|
Power/weight ratio
|
0.4964 HP/kg |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1225 mm (48.2 inches) |
|
Overall length
|
2140 mm (84.3 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1460 mm (57.5 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Blue, grey, black, white |
|
Starter
|
Electric |
|
Comments
|
ABS brakes ads 5 kg. |
|
Modifications compared to previous model
|
New-for-2013 adjustable suspension. Radical new muffler design. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
2.00 litres (0.53 US gallons) |
|
Spark plugs
|
NGK CR9E, NKG CR9EIX |
|
Idle speed
|
1150-1250 RPM |
|
Chain links
|
122 |
|
Sprockets
|
16/46 (front/rear) |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
42 PSI (2.9 Bar or 290 kPa) |
|
Fork tube size
|
43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
