Yamaha EC-03 20122012 Yamaha EC-03 specifications, pictures, reviews and rating |

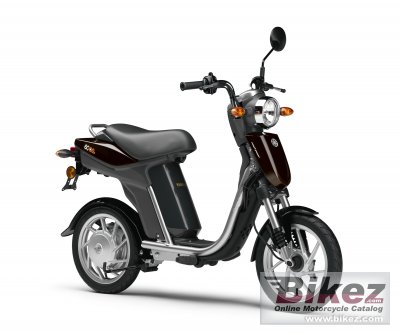

2012 Yamaha EC-03. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| The EC-03 is 100% electric powered commuter vehicle developed with a concept of “Light, Smart, Clean and Silent.” |
| General information | |
|---|---|
| Model name | Yamaha EC-03 |
| Year of manufacture | 2012 |
| Type | Scooter |
| Rating | 3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Type of engine | Electric |
| Engine details | AC synchronous motor |
| Output | 1.9 HP (1.4 kW)) @ 2550 RPM |
| Torque | 9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 280 RPM |
| Top speed | 45.0 km/h (28.0 mph) |
| Cooling system | Air |
| Gearbox | Automatic |
| Emission details | No emissions |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminum |
| Front suspension | Cartridge fork |
| Front wheel travel | 50 mm (2.0 inches) |
| Rear suspension | Mono shock, Swingarm |
| Rear wheel travel | 55 mm (2.2 inches) |
| Front tire | 60/100-12 |
| Rear tire | 60/100-12 |
| Front brakes | Double disc |
| Diameter | 95 mm (3.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 150 mm (5.9 inches) |
| Physical measures and capacities | |
| Dry weight | 56.0 kg (123.5 pounds) |
| Power/weight ratio | 0.0336 HP/kg |
| Seat height | 745 mm (29.3 inches) If adjustable, lowest setting. |
| Overall height | 990 mm (39.0 inches) |
| Overall length | 1565 mm (61.6 inches) |
| Overall width | 600 mm (23.6 inches) |
| Ground clearance | 110 mm (4.3 inches) |
| Other specifications | |
| Color options | White/black, Black |
| Starter | Electric |
| Instruments | Digital LCD display |
| Electrical | 50 V / 15 Ah battery |
| Light | Multi-reflector headlight |
| Carrying capacity | Luggage hook |
| Comments | Lithium-ion battery. Onboard plug-in charger. 7 hours charging. |
