Yamaha DT 175 MX 19791979 Yamaha DT 175 MX specifications, pictures, reviews and rating |

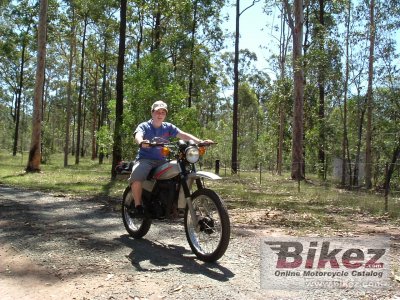

1979 Yamaha DT 175 MX. My Dad bought this bike new in 1979 and now he lets me ride it on our property. it has only 5800 Klm on it since new.. Submit more pictures.
| General information | |
|---|---|
| Motorcycle name | Yamaha DT 175 MX |
| Year | 1979 |
| Category | Enduro / offroad |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 171.0 ccm (10.43 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Reed valve. |
| Power | 15.0 HP (10.9 kW)) @ 7500 RPM |
| Torque | 8.8 Nm (0.9 kgf-m or 6.5 ft.lbs) @ 6000 RPM |
| Top speed | 115.0 km/h (71.5 mph) |
| Compression | 6.8:1 |
| Bore x stroke | 66.0 x 50.0 mm (2.6 x 2.0 inches) |
| Fuel system | Carburettor |
| Fuel control | Membrane |
| Ignition | CDI, magneto type |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate type |
| Driveline | DID428SM chain, 117 links |
| Chassis, suspension, brakes and wheels | |
| Frame type | Welded, tubular, double cradle with single downtube |
| Trail | 60 mm (2.4 inches) |
| Front suspension | Telescopic, oil damped |
| Rear suspension | Dual shocks |
| Front tire | 2.75-21 |
| Rear tire | 3.50-18 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 99.0 kg (218.3 pounds) |
| Weight incl. oil, gas, etc | 111.0 kg (244.7 pounds) |
| Power/weight ratio | 0.1515 HP/kg |
| Seat height | 845 mm (33.3 inches) If adjustable, lowest setting. |
| Overall length | 2080 mm (81.9 inches) |
| Ground clearance | 265 mm (10.4 inches) |
| Wheelbase | 1350 mm (53.1 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Other specifications | |
| Starter | Kick |
| Electrical | 6V, 4Ah battery. |
