Yamaha DT 175 20062006 Yamaha DT 175 specifications, pictures, reviews and rating |

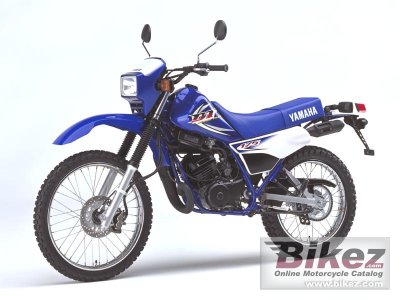

 2006 Yamaha DT 175. Picture submitted by anonymous user.. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| Lightweight handling and responsive engine performance make the DT175 a great bike for new riders, ladies or anyone else looking for an easy-to-ride, no-hassle motorcycle... |
| General information | |
|---|---|
| Model name | Yamaha DT 175 |
| Year of manufacture | 2006 |
| Type | Enduro / offroad |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 171.0 ccm (10.43 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 17.5 HP (12.8 kW)) @ 7000 RPM |
| Torque | 18.6 Nm (1.9 kgf-m or 13.7 ft.lbs) @ 5500 RPM |
| Compression | 6.7:1 |
| Bore x stroke | 66.0 x 50.0 mm (2.6 x 2.0 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Autolube |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Rear suspension | Swingarm |
| Front tire | 2.75-21 |
| Rear tire | 4.10-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 99.0 kg (218.3 pounds) |
| Weight incl. oil, gas, etc | 107.0 kg (235.9 pounds) |
| Power/weight ratio | 0.1768 HP/kg |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 2110 mm (83.1 inches) |
| Overall width | 855 mm (33.7 inches) |
| Ground clearance | 382 mm (15.0 inches) |
| Wheelbase | 1345 mm (53.0 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Green, White, Blue |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Yamaha DT 175 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2006 Yamaha DT 175 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Design and look for the 2006 Yamaha DT 175:  (65.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
