Yamaha DT 175 20042004 Yamaha DT 175 specifications, pictures, reviews and rating |

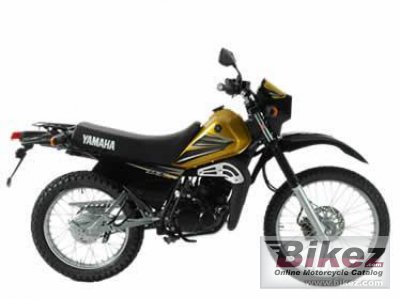

 2004 Yamaha DT 175. Picture submitted by anonymous user.. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| Featuring advanced technology development directly from our World Championship-winning YZ motocrossers.Yamaha´s DT175 is a real favorite with younger riders who want a dual-purpose motorcycle.The upright riding position and wide bars deliver easy manoeuvrability in traffic, and its high-specification engine and chassis make for plenty of fun in the dirt! They´re tough. They´re rugged. And they are built to give riders of all ages a whole lot of fun. Constructed using race-bred technology developed from our Grand Prix-winning motocross machinery, Yamaha´s Fun Bikes are ready to play - any time of the day! Yamaha DT´s - Fantastic street bikes you can ride in the dirt, or great dirt bikes you can ride on the street - You decide. |
| General information | |
|---|---|
| Motorcycle name | Yamaha DT 175 |
| Year model | 2004 |
| Type | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 171.0 ccm (10.43 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 17.5 HP (12.8 kW)) @ 7000 RPM |
| Torque | 18.6 Nm (1.9 kgf-m or 13.7 ft.lbs) @ 5500 RPM |
| Compression | 6.7:1 |
| Bore x stroke | 66.0 x 50.0 mm (2.6 x 2.0 inches) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Rear suspension | Monocross |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 98.0 kg (216.1 pounds) |
| Power/weight ratio | 0.1786 HP/kg |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall height | 1165 mm (45.9 inches) |
| Overall length | 2110 mm (83.1 inches) |
| Overall width | 865 mm (34.1 inches) |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1340 mm (52.8 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | White/Blue, Black/Purple, White/Blue/Black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Yamaha DT 175 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2004 Yamaha DT 175 or advertise any other MC for sale. You can list all 2004 Yamaha DT 175 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
| Rating sample for this Yamaha bike | |
Fun-factor for the 2004 Yamaha DT 175:  (80.1 out of 100)Click here for complete rating. You can also compare bikes. |
|
