Yamaha DT 175 19741974 Yamaha DT 175 specifications, pictures, reviews and rating |

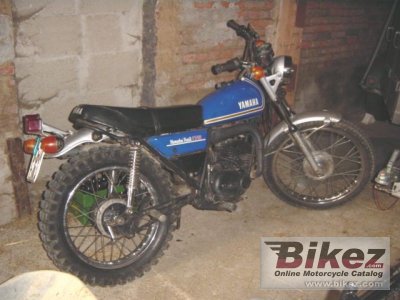

 1974 Yamaha DT 175. Picture credits - Frank Bachmann. Submit more pictures.
|
| General information | |
|---|---|
| Model name | Yamaha DT 175 |
| Year model | 1974 |
| Type | Enduro / offroad |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 171.0 ccm (10.43 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 14.0 HP (10.2 kW)) @ 6340 RPM |
| Top speed | 121.0 km/h (75.2 mph) |
| Compression | 6.8:1 |
| Bore x stroke | 66.0 x 50.0 mm (2.6 x 2.0 inches) |
| Fuel control | Membrane |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 2.75-21 |
| Rear tire | 3.50-18 |
| Front brakes | Expanding brake |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 107.0 kg (235.9 pounds) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
