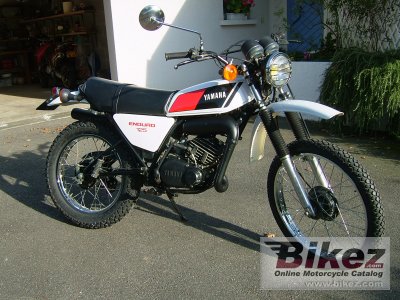

Yamaha DT 125 MX 19781978 Yamaha DT 125 MX specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Yamaha DT 125 MX |
| Model year | 1978 |
| Category | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 123.0 ccm (7.51 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 14.0 HP (10.2 kW)) @ 7000 RPM |
| Torque | 9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 6500 RPM |
| Top speed | 110.0 km/h (68.4 mph) |
| Max RPM | 8000 |
| Bore x stroke | 56.0 x 50.0 mm (2.2 x 2.0 inches) |
| Fuel system | Carburettor. Mikuni VM 24 SH |
| Fuel control | Membrane |
| Lubrication system | Autolube |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 30.0° |
| Front suspension | Hydraulic telescopic fork |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Monocross |
| Rear wheel travel | 145 mm (5.7 inches) |
| Front tire | 2.75-21 |
| Rear tire | 3.00-18 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 95.0 kg (209.4 pounds) |
| Weight incl. oil, gas, etc | 102.0 kg (224.9 pounds) |
| Power/weight ratio | 0.1474 HP/kg |
| Seat height | 845 mm (33.3 inches) If adjustable, lowest setting. |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 2085 mm (82.1 inches) |
| Overall width | 865 mm (34.1 inches) |
| Ground clearance | 265 mm (10.4 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Reserve fuel capacity | 1.00 litres (0.26 US gallons) |
| Oil capacity | 1.00 litres (1.06 US quarts) |
| Other specifications | |
| Starter | Kick |
