Yamaha DS4 DragStar Four 20122012 Yamaha DS4 DragStar Four specifications, pictures, reviews and rating |

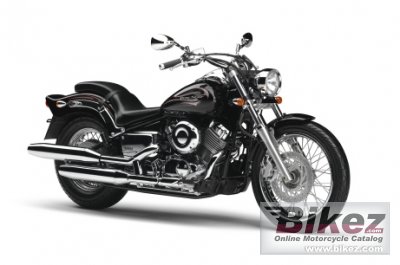

 2012 Yamaha DS4 DragStar Four. Picture credits - Yamaha. Submit more pictures. |
|
| General information | |
|---|---|
| Model | Yamaha DS4 DragStar Four |
| Year | 2012 |
| Category | Custom / cruiser |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 399.0 ccm (24.35 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 30.0 HP (21.9 kW)) @ 7500 RPM |
| Torque | 31.0 Nm (3.2 kgf-m or 22.9 ft.lbs) @ 6000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 68.0 x 55.0 mm (2.7 x 2.2 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet multiple plate coil springs |
| Driveline | Constant mesh |
| Fuel consumption | 2.56 litres/100 km (39.1 km/l or 91.88 mpg) |
| Greenhouse gases | 59.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, double cradle |
| Rake (fork angle) | 35.0° |
| Trail | 153 mm (6.0 inches) |
| Front suspension | Telescopic |
| Rear suspension | Swing arm |
| Front tire | 130/90-16M |
| Rear tire | 170/80-15M |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 234.0 kg (515.9 pounds) |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 2450 mm (96.5 inches) |
| Overall width | 930 mm (36.6 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1625 mm (64.0 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 3.20 litres (3.38 US quarts) |
| Other specifications | |
| Color options | Black, red |
| Starter | Electric |
| Electrical | 12V 8.6Ah battery |
| Light | Halogen headlight 60W |
| Comments | Sold in Japan. |
| Update specs | Report missing specs or required updates. |
