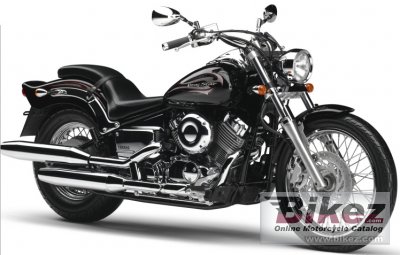

Yamaha DS4 Drag Star Four 400 20112011 Yamaha DS4 Drag Star Four 400 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Yamaha DS4 Drag Star Four 400 |
| Year model | 2011 |
| Type | Custom / cruiser |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 399.0 ccm (24.35 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 32.2 HP (23.5 kW)) @ 7500 RPM |
| Torque | 32.0 Nm (3.3 kgf-m or 23.6 ft.lbs) @ 6000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 68.0 x 55.0 mm (2.7 x 2.2 inches) |
| Fuel system | Carburettor. BDS28 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet multiple plate coil springs |
| Fuel consumption | 2.33 litres/100 km (42.9 km/l or 100.95 mpg) |
| Greenhouse gases | 54.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 35.0° |
| Trail | 153 mm (6.0 inches) |
| Front tire | 100/90-19 |
| Rear tire | 170/80-15 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 209.0 kg (460.8 pounds) |
| Weight incl. oil, gas, etc | 225.0 kg (496.0 pounds) |
| Power/weight ratio | 0.1540 HP/kg |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 2340 mm (92.1 inches) |
| Overall width | 840 mm (33.1 inches) |
| Wheelbase | 1610 mm (63.4 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 3.10 litres (3.28 US quarts) |
| Other specifications | |
| Starter | Electric |
| Comments | Sold in Japan. |
