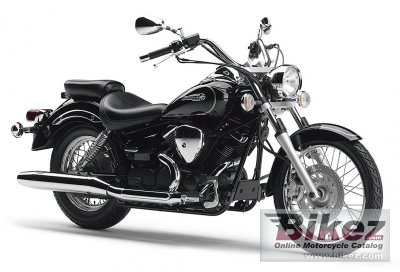

Yamaha DS250 DragStar 20122012 Yamaha DS250 DragStar specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Yamaha DS250 DragStar |
| Year of manufacture | 2012 |
| Type | Custom / cruiser |
| Rating | 3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 249.0 ccm (15.19 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 20.8 HP (15.2 kW)) @ 8000 RPM |
| Torque | 20.7 Nm (2.1 kgf-m or 15.3 ft.lbs) @ 6000 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 49.0 x 66.0 mm (1.9 x 2.6 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. BDS26 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multiple plate coil springs |
| Driveline | Constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Rake (fork angle) | 35.0° |
| Trail | 135 mm (5.3 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 80/100-18 |
| Rear tire | 130/90-15 |
| Front brakes | Single disc |
| Diameter | 282 mm (11.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Seat | Dual seat |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 160.0 kg (352.7 pounds) |
| Seat height | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Overall height | 1075 mm (42.3 inches) |
| Overall length | 2320 mm (91.3 inches) |
| Overall width | 910 mm (35.8 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1530 mm (60.2 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Oil capacity | 1.80 litres (1.9 US quarts) |
| Other specifications | |
| Color options | Midnight black, blue/white |
| Starter | Electric |
| Electrical | 12V, 6Ah battery |
| Light | Halogen bulb 12V, 60/55W headlight |
| Comments | Sold in Japan. |
| Update specs | Report missing specs or required updates. |
