General information |
|
Motorcycle name
|

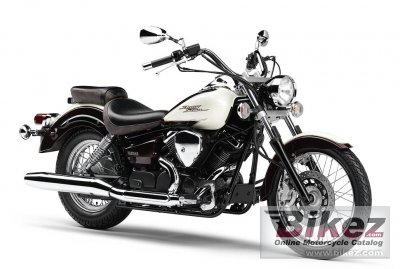

Yamaha DS250 Drag Star Two-Fifty 250 |
|
Year of manufacture
|
2011 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
249.0 ccm (15.19 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
20.8 HP (15.2 kW)) @ 10000 RPM |
|
Torque
|
20.7 Nm (2.1 kgf-m or 15.3 ft.lbs) @ 2100 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
49.0 x 66.0 mm (1.9 x 2.6 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. BDS26 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiple plate coil springs |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle |
|
Rake (fork angle)
|
35.0° |
|
Trail
|
135 mm (5.3 inches) |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
100 mm (3.9 inches) |
|
Front tire
|
80/100-18 |
|
Rear tire
|
130/90-15 |
|
Front brakes
|
Single disc |
|
Diameter
|
282 mm (11.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
147.0 kg (324.1 pounds) |
|
Weight incl. oil, gas, etc
|
159.0 kg (350.5 pounds) |
|
Power/weight ratio
|
0.1414 HP/kg |
|
Seat height
|
670 mm (26.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1075 mm (42.3 inches) |
|
Overall length
|
2320 mm (91.3 inches) |
|
Overall width
|
910 mm (35.8 inches) |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1530 mm (60.2 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Oil capacity
|
1.80 litres (1.9 US quarts) |
|
Other specifications |
|
Color options
|
Midnight black |
|
Starter
|
Electric |
|
Comments
|
Sold in Japan. |
