Yamaha Drag Star Classic Four 20022002 Yamaha Drag Star Classic Four specifications, pictures, reviews and rating |

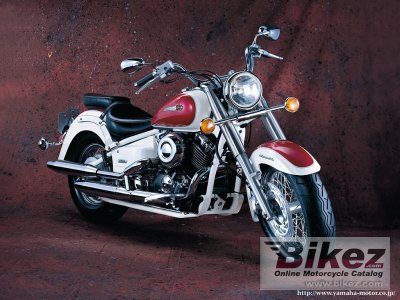

 2002 Yamaha Drag Star Classic Four. Picture by Yamaha. Published with permission.. Submit more pictures.
|
|
| General information | |
|---|---|
| Model | Yamaha Drag Star Classic Four |
| Year of manufacture | 2002 |
| Type | Custom / cruiser |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 399.0 ccm (24.35 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 32.0 HP (23.4 kW)) @ 7500 RPM |
| Torque | 32.0 Nm (3.3 kgf-m or 23.6 ft.lbs) @ 6000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 68.0 x 55.0 mm (2.7 x 2.2 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 130/90-16 67S |
| Rear tire | 170/80-15 M/C 77S |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 224.0 kg (493.8 pounds) |
| Power/weight ratio | 0.1429 HP/kg |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2450 mm (96.5 inches) |
| Overall width | 930 mm (36.6 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1625 mm (64.0 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Yamaha Drag Star Classic Four discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2002 Yamaha Drag Star Classic Four for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha bike | |
Design and look for the 2002 Yamaha Drag Star Classic Four:  (84.6 out of 100)Click here for complete rating. You can also compare bikes. |
|
