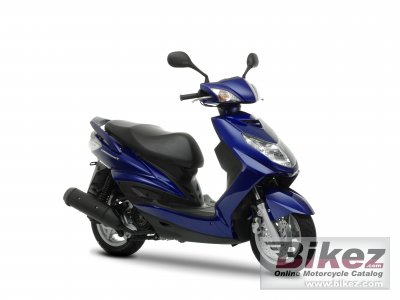

Yamaha's profilation of this bike |
CygnusX’s short wheelbase, 12inch wheels and featherweight 114kg footprint mean that riders of any size can enjoy its fast responses and low-effort flickability. |
General information |
Model
|
Yamaha CygnusX |
Year
|
2009 |
Category
|
Scooter |
Rating
|
3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
125.0 ccm (7.63 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power
|
10.7 HP (7.8 kW)) @ 8500 RPM |
Torque
|
9.3 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 7500 RPM |
Compression
|
10.0:1 |
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
Fuel system
|
Injection |
Ignition
|
TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Front wheel travel
|
78 mm (3.1 inches) |
Rear suspension
|
Unit swing |
Rear wheel travel
|
96 mm (3.8 inches) |
Front tire
|
110/70-12 |
Rear tire
|
120/70-12 |
Front brakes
|
Single disc |
Diameter
|
216 mm (8.5 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
150 mm (5.9 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
120.0 kg (264.6 pounds) |
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
Overall height
|
1130 mm (44.5 inches) |
Overall length
|
1855 mm (73.0 inches) |
Overall width
|
685 mm (27.0 inches) |
Ground clearance
|
113 mm (4.4 inches) |
Fuel capacity
|
7.10 litres (1.88 US gallons) |
Other specifications |
Starter
|
Electric & kick |
Update specs | Report missing specs or required updates. |
