General information |
|
Model
|

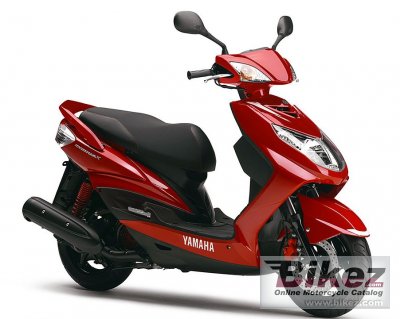

Yamaha Cygnus X SR |
|
Year model
|
2013 |
|
Type
|
Scooter |
|
Rating
|
2.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
11.0 HP (8.0 kW)) @ 8500 RPM |
|
Torque
|
9.1 Nm (0.9 kgf-m or 6.7 ft.lbs) @ 7500 RPM |
|
Top speed
|
110.0 km/h (68.4 mph) |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
2.50 litres/100 km (40.0 km/l or 94.09 mpg) |
|
Greenhouse gases
|
58.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Backbone |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front tire
|
110/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
216 mm (8.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
150 mm (5.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
114.0 kg (251.3 pounds) |
|
Weight incl. oil, gas, etc
|
122.0 kg (269.0 pounds) |
|
Power/weight ratio
|
0.0965 HP/kg |
|
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
1855 mm (73.0 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1295 mm (51.0 inches) |
|
Fuel capacity
|
7.10 litres (1.88 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Carrying capacity
|
Full-size helmet storage under seat. Glovebox in the knee-panel |
|
Comments
|
Sold in Japan. |
